Description

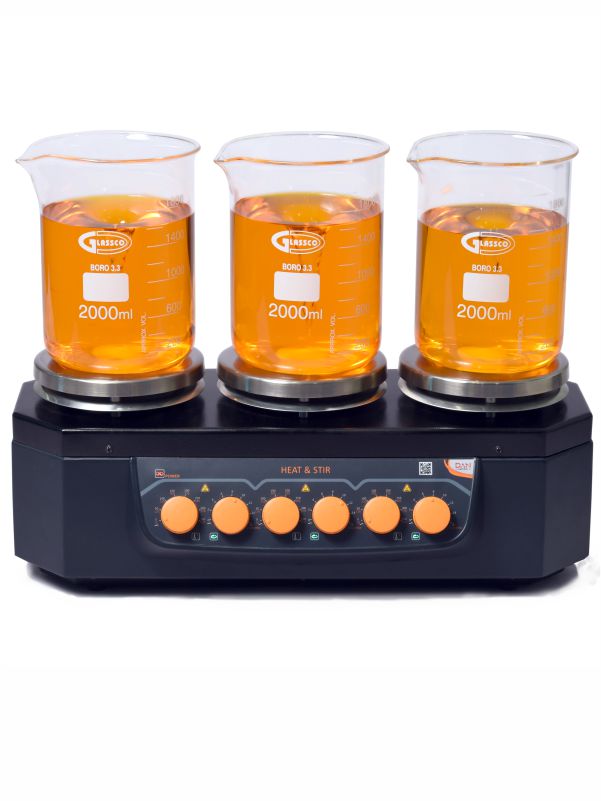

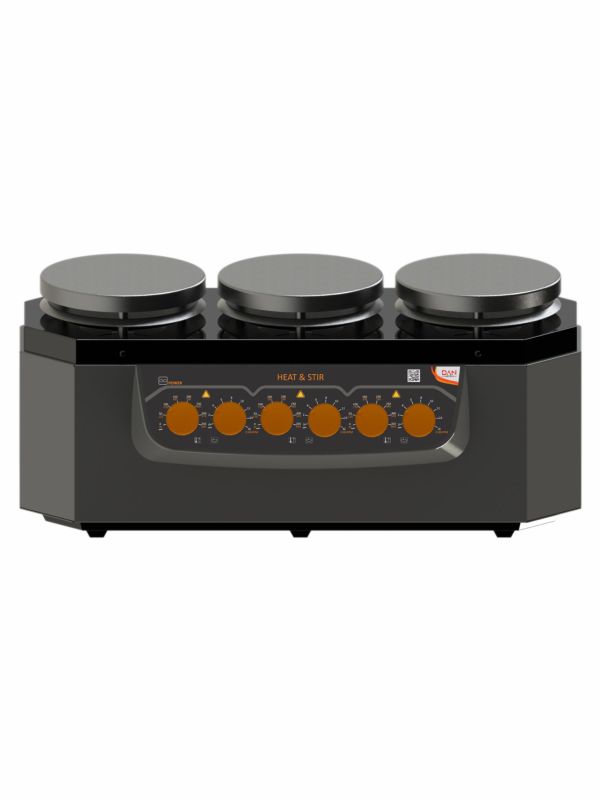

Magnetic Stirrer with Hotplate – Digital :
- Three independently controlled stirring/heating positions.
- Powerful magnets for strong magnetic coupling
- Easy temperature & Stir controls.
- Installed with Safety PT sensor for fail safe operation.
- LED hot top indicator for temperatures above 50°C for each station.
- Electronic variable speed control with Knob for display
- Knob for regulating variable temperature
- Heat reach Indicator, To ensure you correct temperature of plate surface.
- Stirring Indicator
- LED error code displays & safety for heat & Stir function inbuilt trouble shoot
Technical Specification:
| Heang Mantle Material | Stainless Steel Ceramic Coated |
| Dimension of heang plate | Ø 150mm |
| Volume cap. |
20 L each station |
| Speed Range | 1600 RPM |
| Stirring position | 3 |
| Maximum stirring range | Can use upto 80mm bar Lower speed |
| Maximum plate temperature |
350°C |
| Overall dimensions (w x d x h), mm | 505 x 246 x 195 (LxWxH) |
| Plate dimensions, mm | 504 x 175 x 30 (LxWxH) |
| Net weight, kg |
7.0 kg (Approx.) |
| Permissible ambient temperature |
5 – 40°C |
| Permissible relative moisture |
80% |
| IP Class |
21 |
| Heat | RPM | HEAT/STIR | CELSIUS TO | Temperature |
|---|---|---|---|---|
| 1350W | 0-1600 RPM | SELECTION | FAHRENHEIT | Upto 350 °C |
